Experience The Difference
We are familiar with all kind of Clean Room Equipment’s that are:

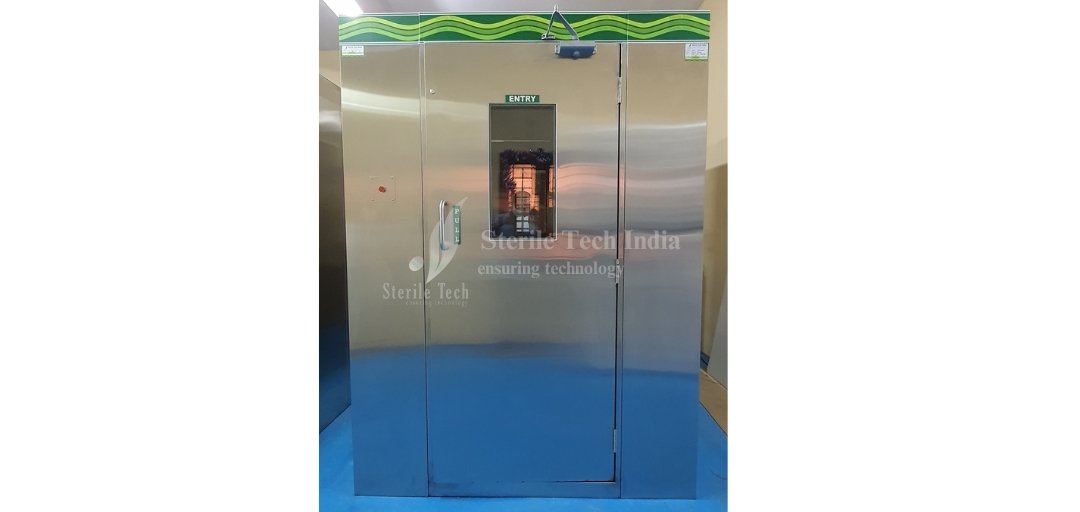

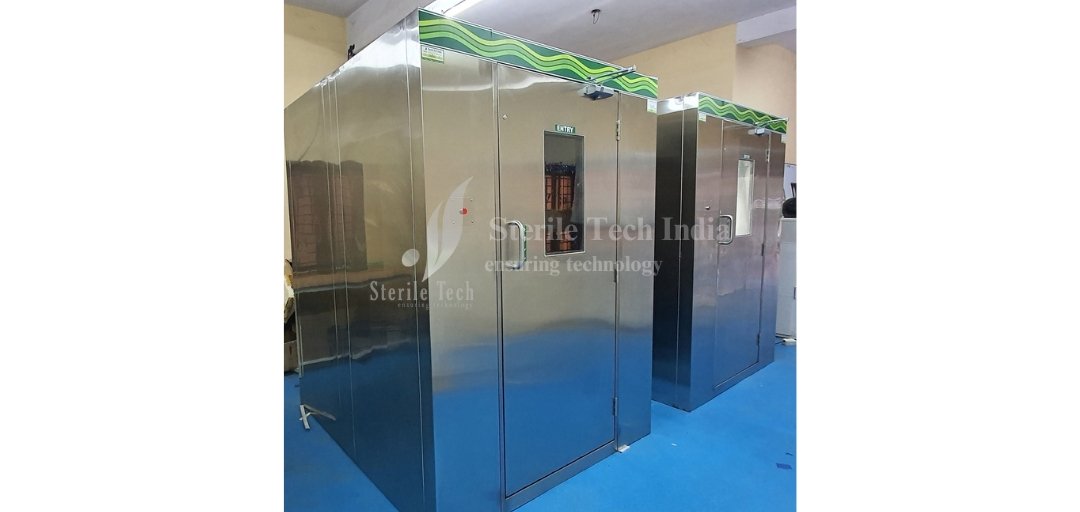

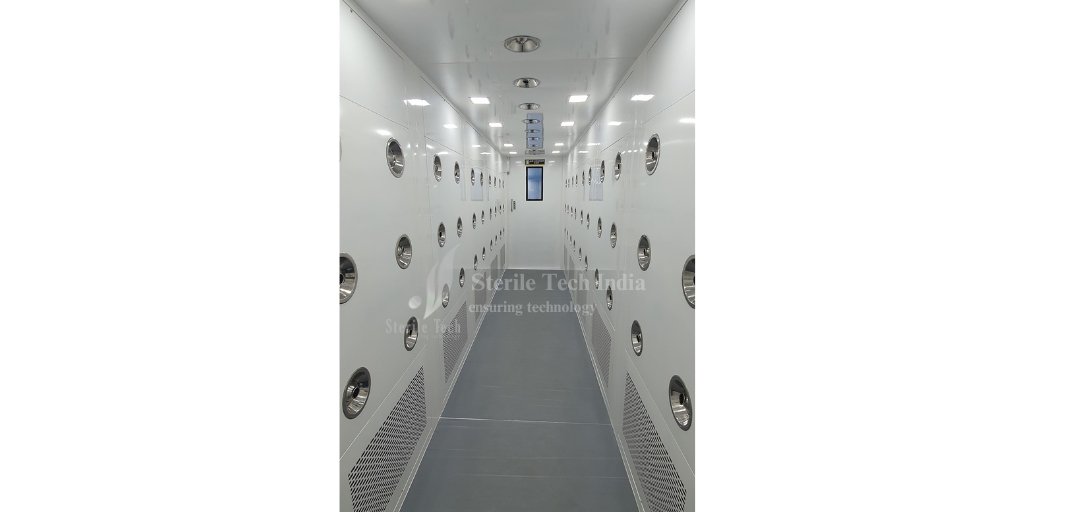

Air Shower
Air Showers are self contained chambers installed at entrances to clean rooms and other controlled environments. They minimize particulate matter entering or exiting the clean space. Personnel and materials entering or exiting the controlled environment are “scrubbed” by high velocity HEPA-filtered air jets with velocities of 22-24m/s (5500-6000fpm). Contaminated air is then drawn through the base within the unit, filtered and recirculated.
Technical Specification
Cleanliness: class 100, (ISO – 5)
Standard: FED 209E
Velocity: 90FPM±20
Noise Level: 65db max
Power Supply: 230V (1Ø) or 420V (3 Ø), 50Hz
Particle Retention: 0.3 micron
Supply filter: HEPA Filter efficiency 99.99% Down to 0.3µ H-14 Rating.
Pre Filter: Micro glass fibre media of EU-4 Rating
Motor Blower Assembly: Centrifugal Blower statically and dynamically balanced with Suitable Rating
Dimension Table
|
Sterile TechTM Model No
|
SAS 336
|
SAS 366
|
SAS 396
|
|
|
Working Size
|
(W x D x H)Ft
|
3’ x 3’ x 6’
|
3’ x 6’ x 6’
|
3’ x 9’ x 6’
|
